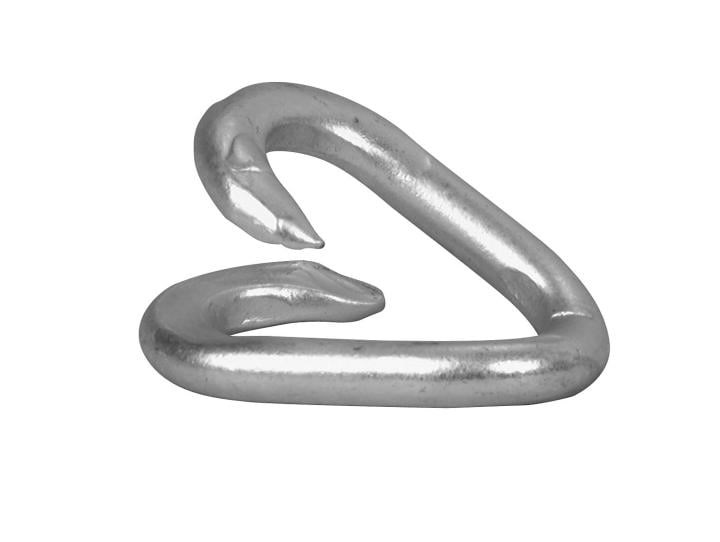

CAMPBELL CHAIN REPAIR LINK - 1/2" x 2-1/2"

Campbell Chain repair link (also called a lap link) is a permanent quick-fix connector for joining broken chain ends or attaching hardware to a chain end. The link has two open hooks at one end that wrap around the chain link or eye; once positioned, the hooks are hammered flat against the link body to lock the connection. Distinct from screw-collar quick links (removable) and snap hooks (spring-gated, removable), a repair link is a one-time permanent connection that carries the rated working load of standard utility chain at the same trade size.

• Size: 1/2" x 2-1/2" (chain trade size x overall link length)
• Safe working load: 2,125 Lb
• Material: low-carbon steel, Class 3 general utility grade
• Finish: Blu-Krome zinc plating with blue chromate dip - the visibly blue Campbell-branded utility finish
• Connection method: insert the chain link or eye, then hammer the two open hooks flat against the link body
• Use as a permanent chain repair, end attachment, or multi-chain junction
• Permanent connection - cannot be re-opened without cutting the link
• Not for overhead lifting; do not exceed the safe working load limit

Tip: The 1/2" x 2-1/2" link matches 1/2" chain at 2,125 Lb SWL - the heavy utility size for tow chain repair, marine mooring chain ends, anchor chain terminations, and heavy trailer or ATV cargo securement where a smaller repair link would under-rate the chain.
