Spring Snap Link - 5/16"
Spring Snap Link - 5/16"

Available Sizes:

Description:

Item # TVE2YCUPC: 020418201592

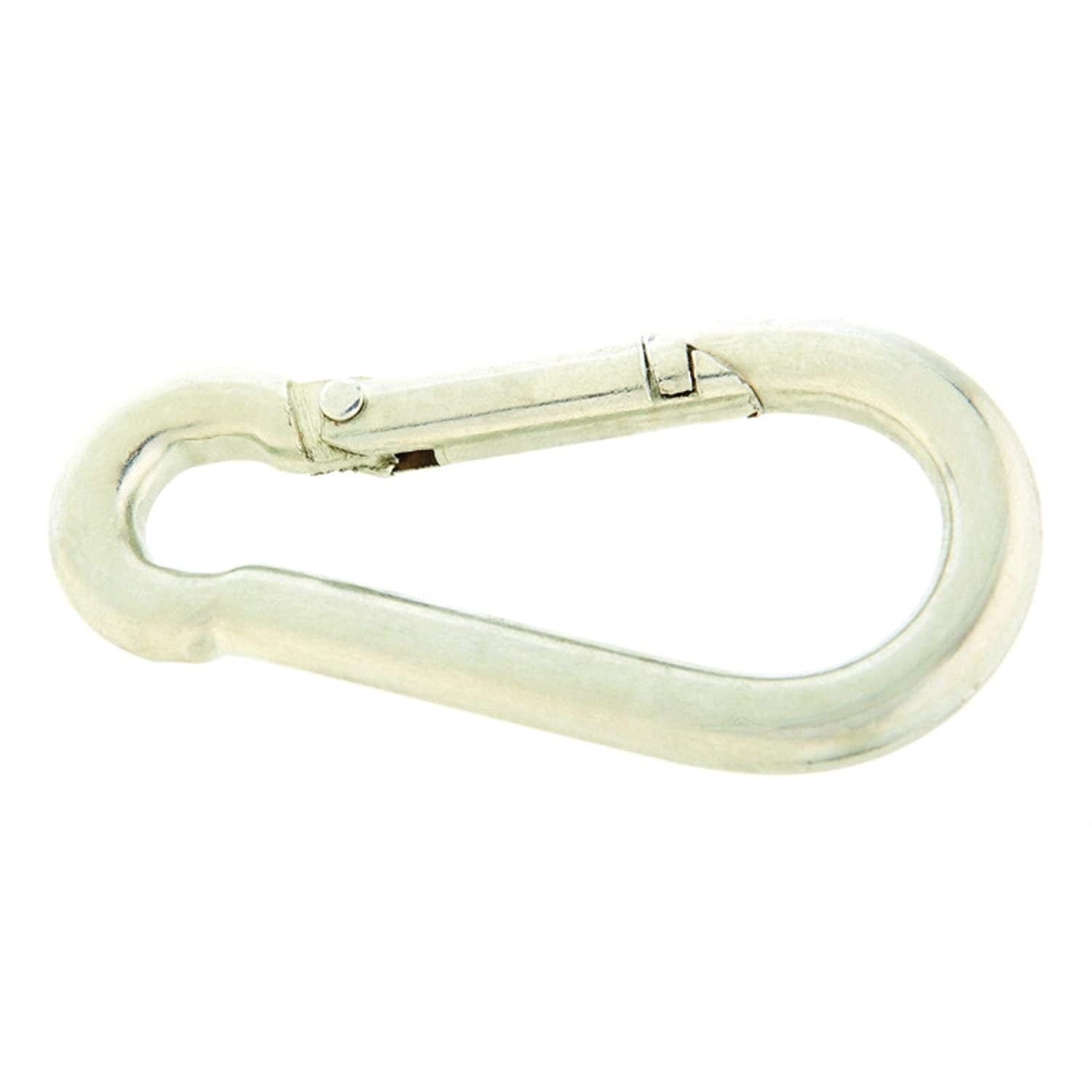

CAMPBELL CHAIN SPRING SNAP LINK

Single-ended spring-loaded snap hook for quick-attach tethering and light-utility connections. Interlocking zinc-plated formed-steel construction with a thumb-operated spring gate that closes automatically to a captive position - no tools needed to clip into a ring, eye, or chain link. Pack opens loose with a UPC tag for easy individual retail handling.

  • Type: Single-end spring-loaded snap (gate at one end, fixed eye at the other)
  • Size: 5/16" eye opening x 2-3/8" overall length
  • Working Load Limit: 130 Lb (rated WLL, NOT breaking strength)
  • Material: Formed steel, interlocking two-piece construction
  • Finish: Zinc plated for indoor and light-exterior corrosion resistance
  • Gate: Spring-return thumb gate - closes automatically when released
  • Packaging: Sold each, packed loose with UPC tag
  • NOT for overhead lifting, supporting human weight, playground/athletic equipment, or as a safety device

Tip: 5/16" (130 Lb WLL) handles small-dog and cat leashes, light tether work for small livestock and poultry, banner hanging on light flags and small signs, and small-craft connector work. Inspect the spring gate before each use - the gate should snap fully closed under its own spring tension; replace any snap whose gate lags, sticks open, or shows visible wear or distortion at the closure tang. For salt-water or constant outdoor exposure, step up to a stainless-steel snap (zinc plating is for indoor and light-weather service only).
