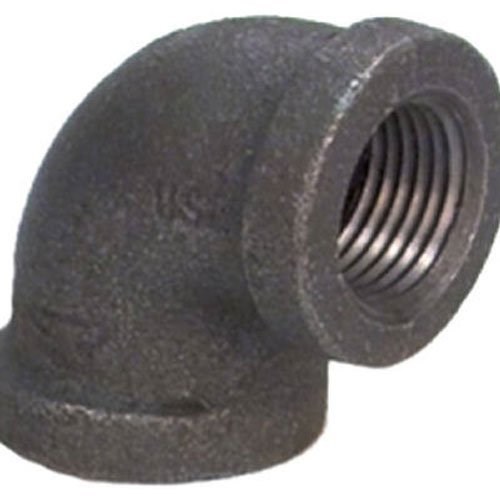

Class 150 malleable iron 90-degree elbow with female NPT threads on both ends. Used to make a 90-degree direction change in threaded pipe runs for water, gas, oil, air, and low-pressure steam service.

• Material: Malleable iron, ASTM A197
• Finish: Uncoated (black) malleable iron
• End connections: Female NPT (FNPT), both ends
• Pressure class: 150 (rated to 300 PSI cold WSP)
• Conforms to ANSI/ASME B16.3
• Size: 2"
• Made in USA

Installation tip: Apply pipe joint compound or PTFE thread sealant tape to the male threads before assembly. Black fittings are uncoated and suited for natural gas, fuel oil, and indoor dry service. Not recommended for direct water-line use without paint or coating.
