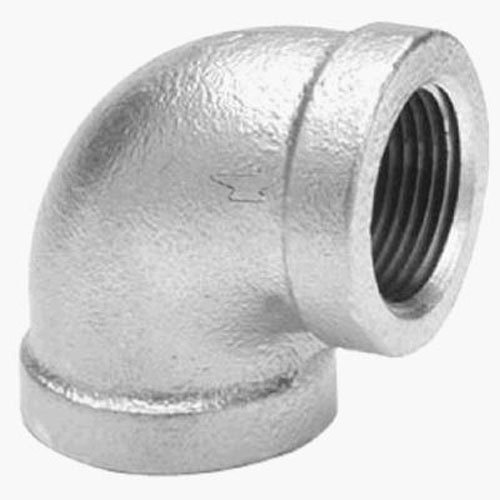

Class 150 malleable iron 90-degree elbow with female NPT threads on both ends. Used to make a 90-degree direction change in threaded pipe runs for water, gas, oil, air, and low-pressure steam service.

• Material: Malleable iron, ASTM A197
• Finish: Zinc-coated (hot-dip galvanized) malleable iron
• End connections: Female NPT (FNPT), both ends
• Pressure class: 150 (rated to 300 PSI cold WSP)
• Conforms to ANSI/ASME B16.3
• Size: 3/4"
• Made in USA

Installation tip: Apply pipe joint compound or PTFE thread sealant tape to the male threads before assembly. Galvanized fittings are zinc-coated for water lines, outdoor exposure, and damp-location use. Do not use on natural gas lines per most plumbing codes.
