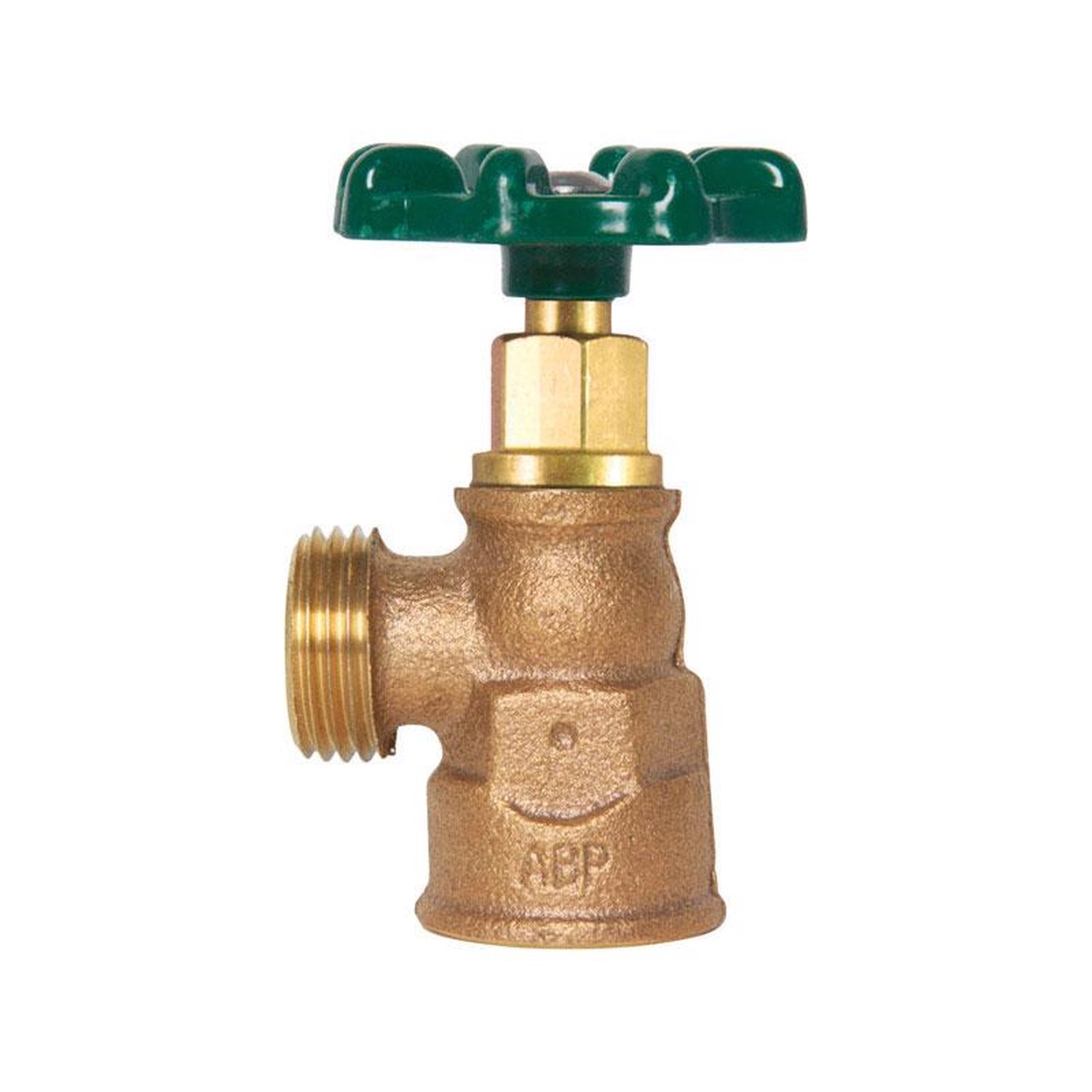

The Arrowhead Brass 220LF lead-free bronze boiler drain features a 3/4" female pipe thread inlet and 3/4" garden hose thread outlet for easy draining of boilers, water heaters, and hydronic systems. The exclusive one-piece O-ring bonnet and stem design eliminates the packing nut for leak-free, low-maintenance service. Rated to 125 PSI and 180 deg F. NSF/ANSI 372 certified and IAPMO listed for potable water service. Made in the USA with a 3-year limited warranty.

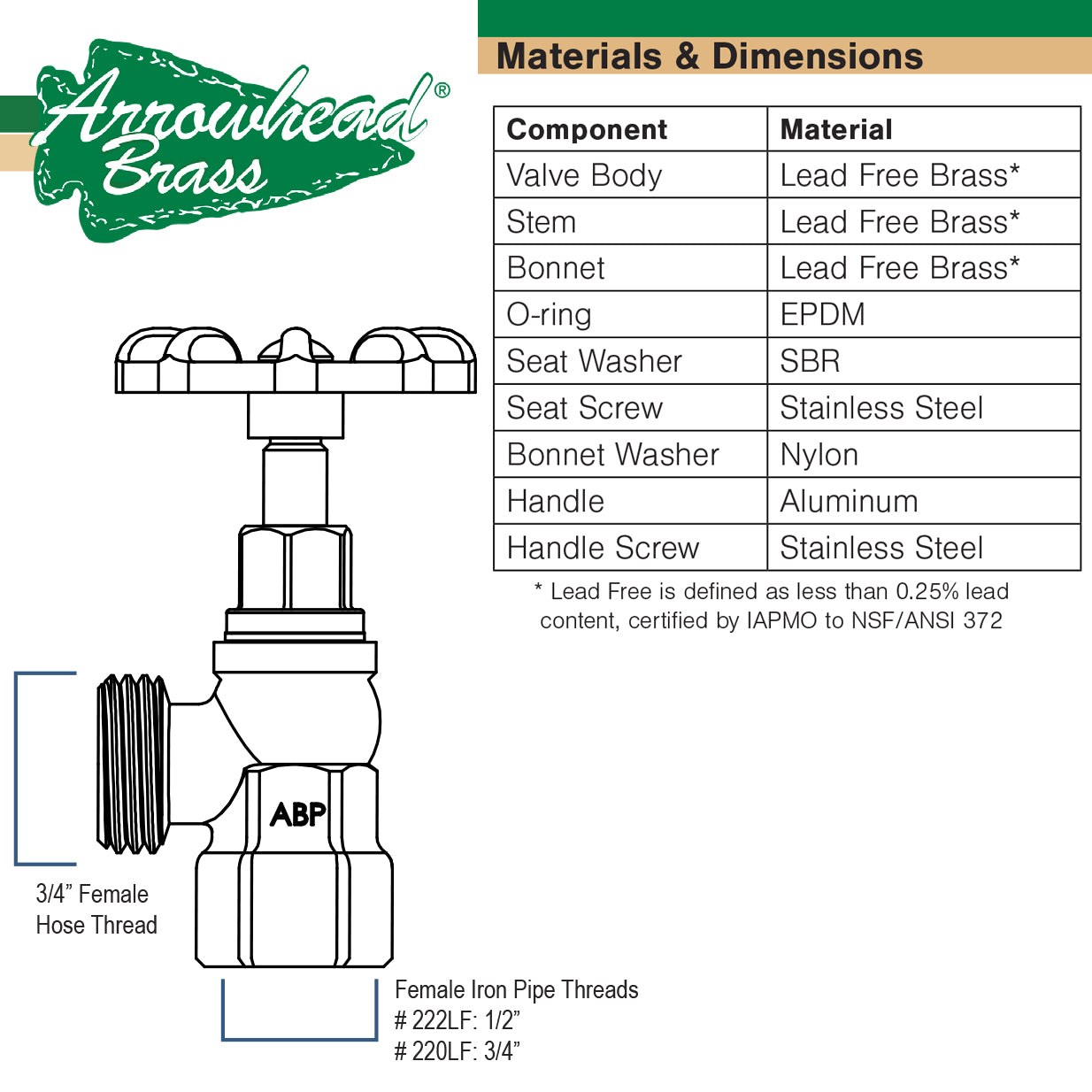

• 3/4" FPT inlet x 3/4" garden hose thread outlet
• Lead-free bronze construction (NSF/ANSI 372 certified)
• One-piece O-ring bonnet and stem - no packing nut to repack
• 125 PSI maximum working pressure
• 180 deg F maximum temperature
• IAPMO listed for potable water service
• Made in the USA, 3-year limited warranty

Inlet Selection: The 3/4" FPT (female pipe thread) inlet accepts a 3/4" male pipe nipple or threaded stub projecting from the boiler, tank, or hydronic manifold. Choose FPT when the boiler/tank has a male threaded stub-out (common on bottom-drain water heaters and older cast-iron boilers). For a female-tapped port, use the MPT version (223LF (3/4" MPT)). 3/4" boiler drains suit larger residential and light commercial water heaters, higher-flow draining, and snow-melt or radiant-floor system service.

Installation Tip: Wrap 2-3 turns of PTFE thread tape clockwise on the pipe-thread inlet, thread by hand into the boiler/tank port, then wrench an additional 1/2 turn past hand-tight. Do not over-torque - bronze threads strip more easily than steel. The 3/4" garden hose thread outlet accepts any standard 3/4" GHT garden hose or hose cap for safe controlled draining.
