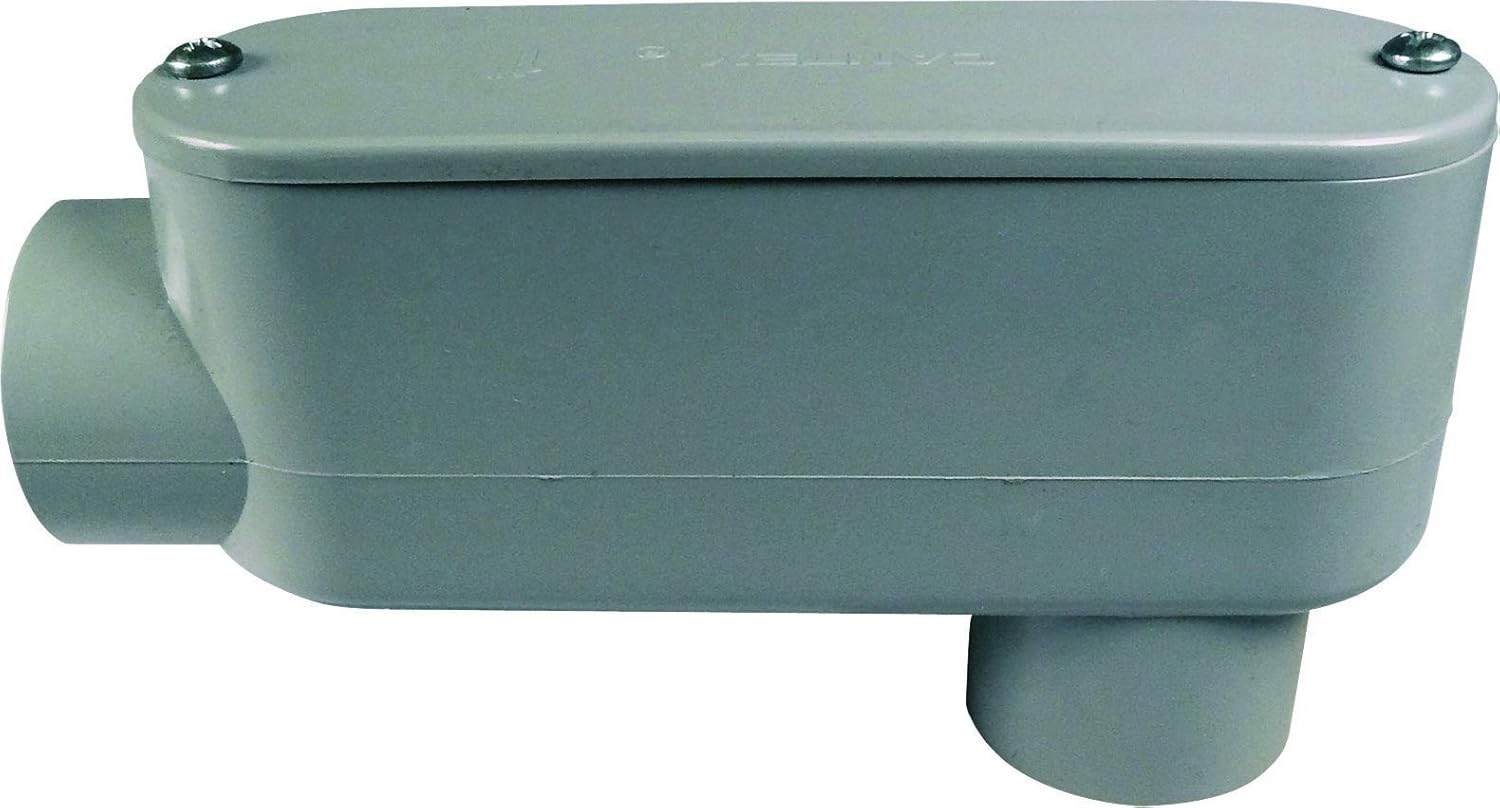

Cantex Type LB conduit body for non-metallic PVC conduit systems, providing a 90-degree turn with a removable cover for pulling wire and making connections at a wall penetration. The back hub exits through the wall while the in-line hub continues along the run, making this the standard fitting for transitioning conduit from interior to exterior or from one room to another without sharp bends that would foul a wire pull.

• Material: Rigid Schedule 40/80 PVC (gray)
• Type: LB (back hub at 90 degrees to the in-line hubs, with removable threaded cover)
• Trade size: 1-1/2"
• Manufacturer part number: 5133667U
• Use case: 70-100 A sub-panel feeders with #4 AWG, larger commercial branch feeders, multi-conductor service drops
• UL 514B listed; suitable for use with PVC Schedule 40 or Schedule 80 conduit per NEC Article 352
• Includes removable cover, neoprene gasket, and stainless steel cover screws for a weather-tight seal in wet locations

Install Tip: Use PVC primer and solvent cement on both the conduit ends and the body hubs for a permanent watertight bond; do not glue the cover. Set the cover gasket dry so it remains serviceable for future wire pulls. In wet or outdoor locations, orient the body so the cover faces down or to the side rather than up, so water drains away from the gasket rather than pooling on it.
