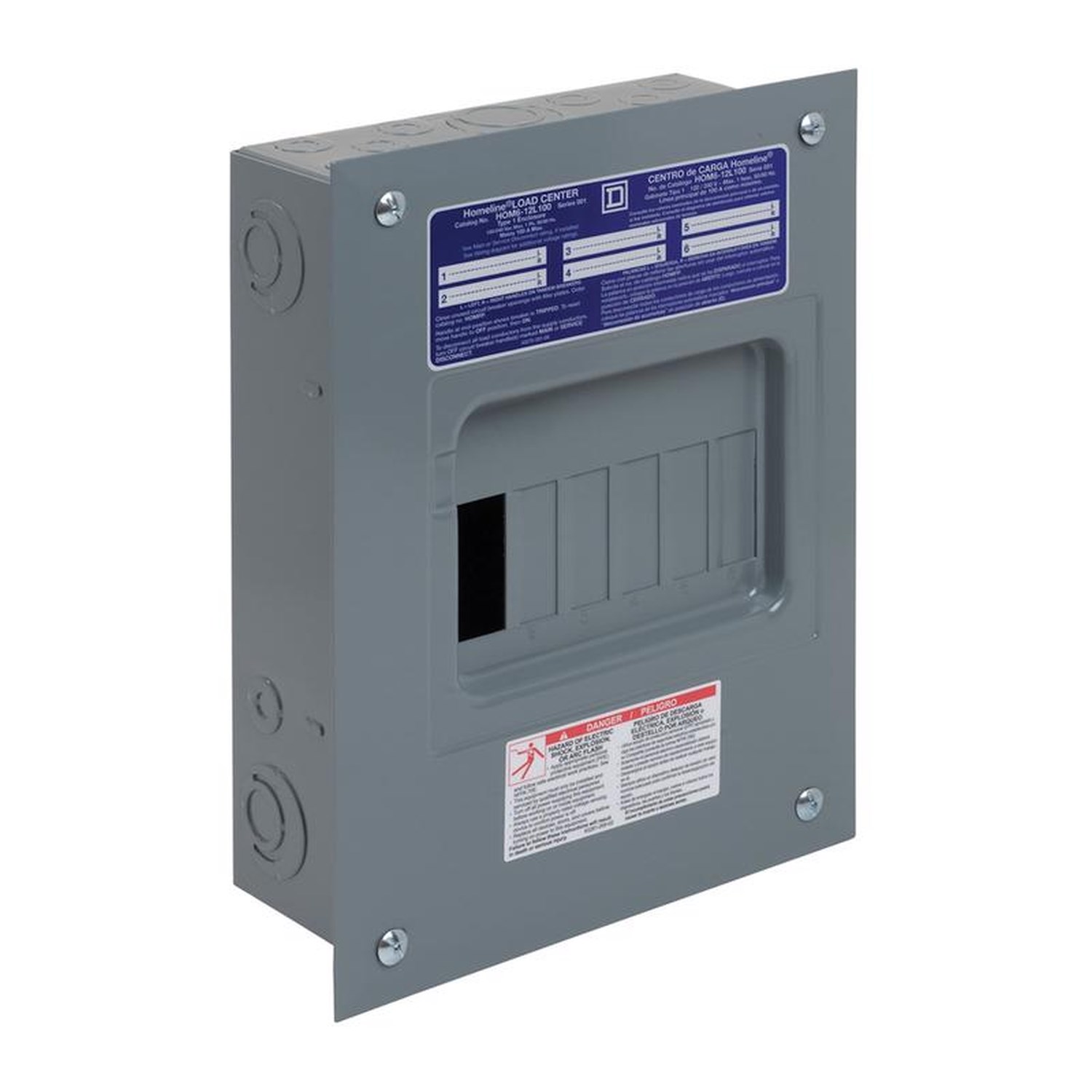

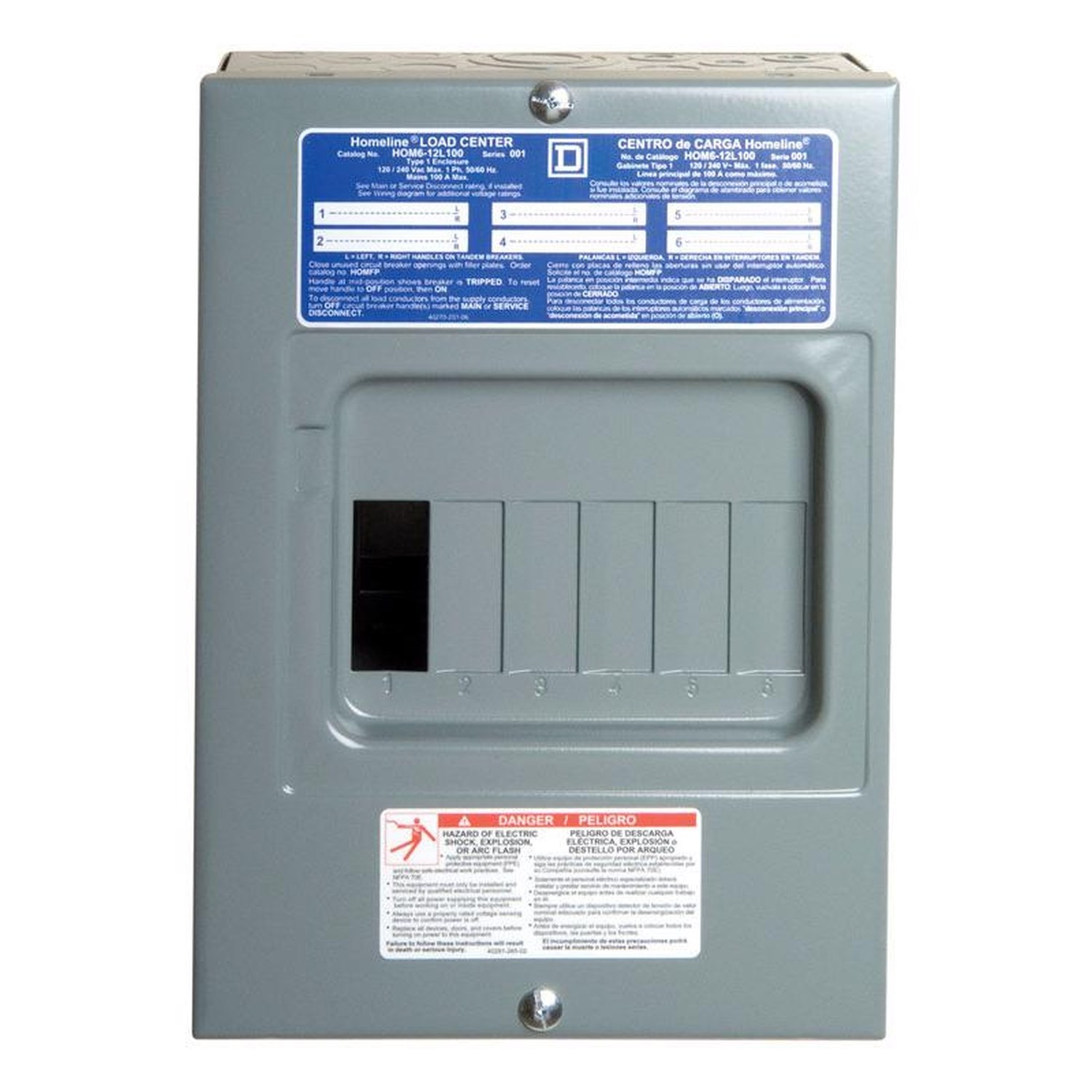

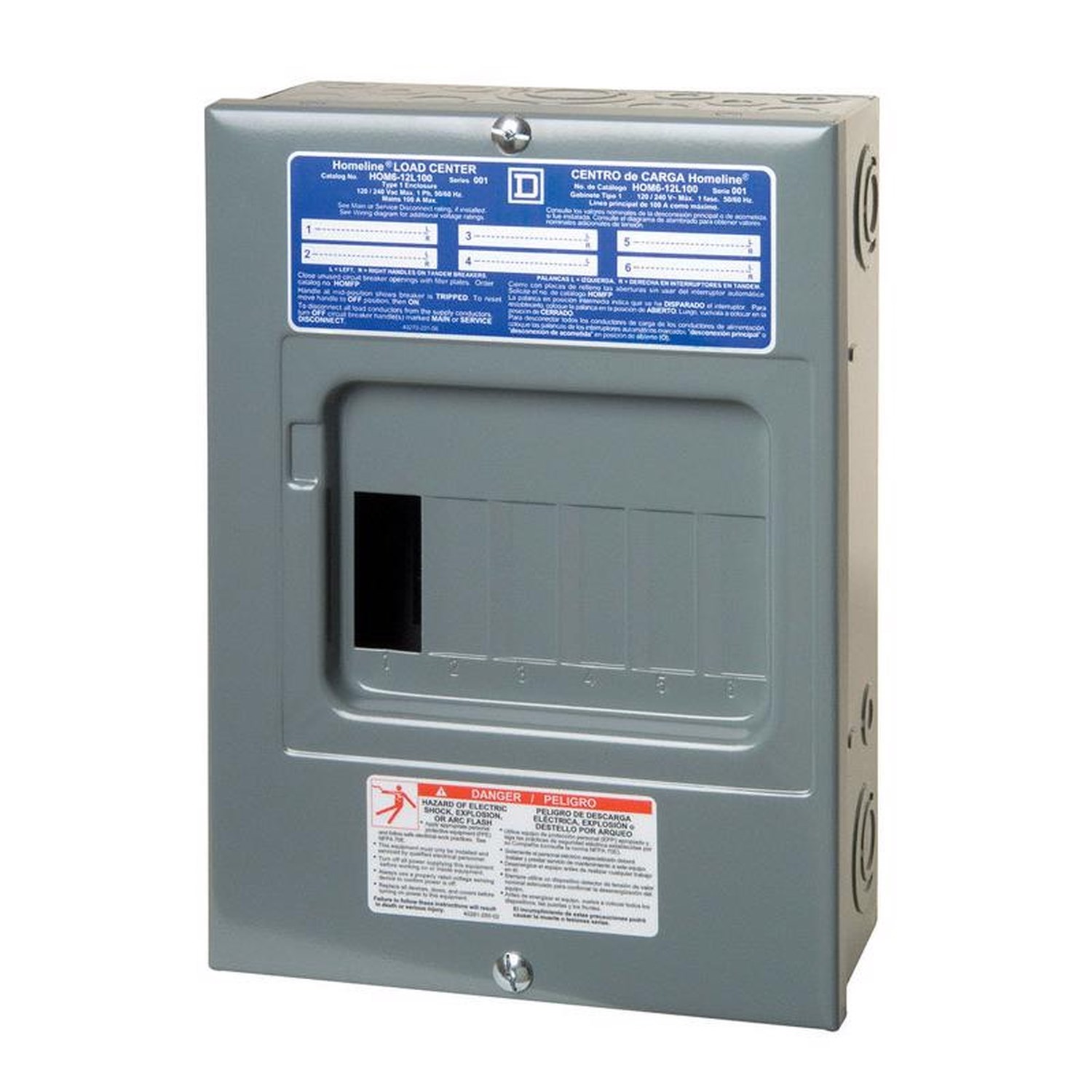

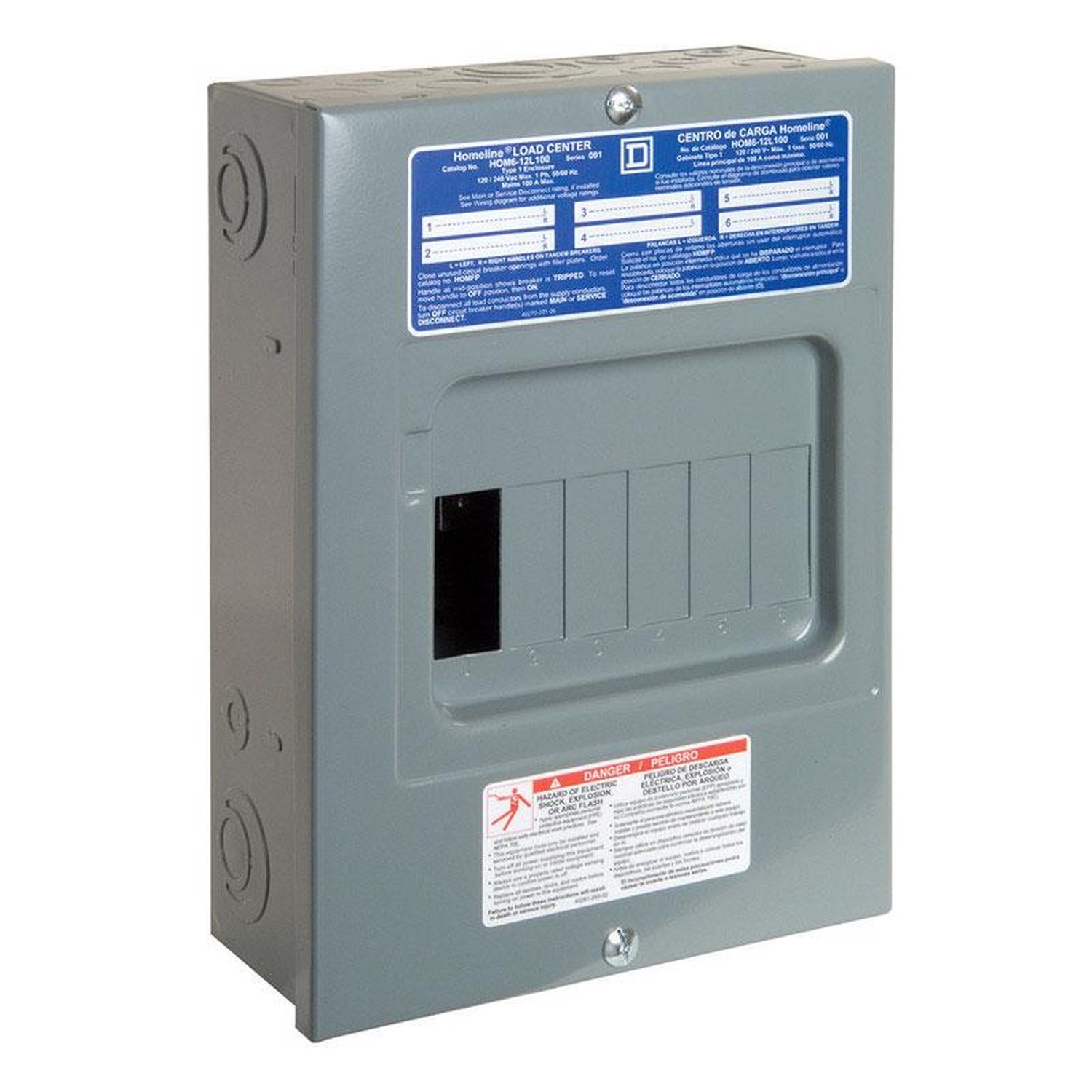

Square D Homeline plug-on neutral load center provides reliable residential power distribution with 100-amp capacity in a compact 6-space indoor enclosure. The main lug design makes it ideal for use as a subpanel.

• 100A, 120/240 VAC, single phase
• 6 spaces, 12 circuits maximum (with tandem breakers)
• 10,000 AIC short-circuit current rating
• Accepts wire sizes 14-4 AWG copper or 12-3 AWG aluminum
• Plug-on neutral design for fast AFCI/GFCI breaker installation
• Tandems accepted in all spaces
• Three ground bar mounting locations (left, right, bottom)
• Surface mount cover included

Features tangential main service knockouts, straight-in mains design, and removable interior for paint protection. Compatible with all Square D Homeline breakers. UL Listed.
