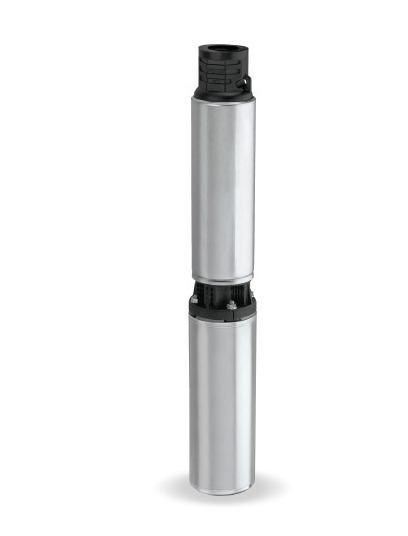

4" Submersible Pumps are the most economical, energy-efficient pumps for 4" wells or larger. They provide the optimum amount of water and pressure for general home and farm use.

Key features:

• For 4" inside diameter or larger wells
• Pumps from depths of 300 ft
• Patented Floating Stack design for sand resistance and reduced sand locking
• Corrosion-resistant stainless steel pump and motor housing
• Body Construction: Stainless Steel
• Number of wires: 2 plus ground - 230v 60 Hz
• Pump wires direct to pressure switch - Requires no control box
• HP: 1
• Performance Series: 10 GPM - Pumps 11.9 GPM at 150 ft and Pumps 7.4 GPM at 250 ft
• Max capacity: 15.6 GPM
• Stages: 7
• Operation Range: 20 ft to 300 ft
• Maximum depth to water: 300 ft
• Max PSI: 170 psi
• Discharge pipe size: 1-1/4" NPT
• Recommended breaker: 20 amp
