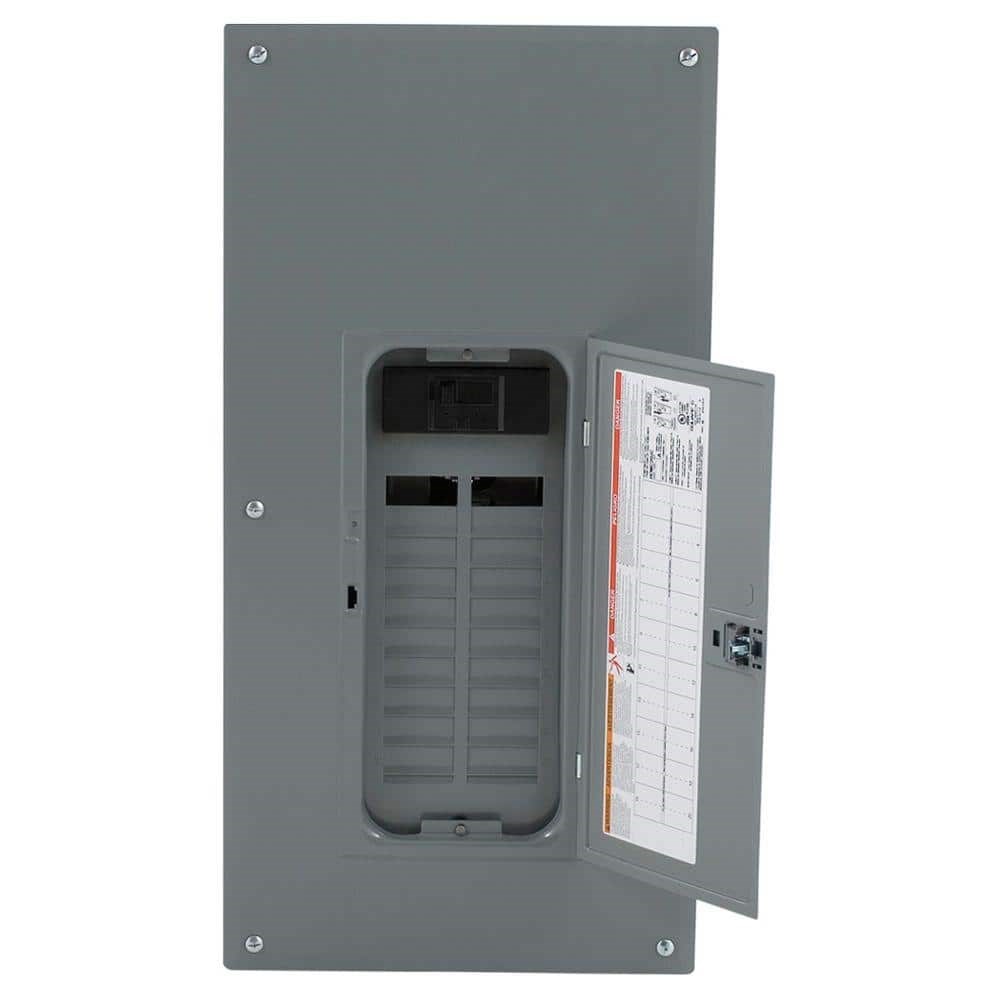

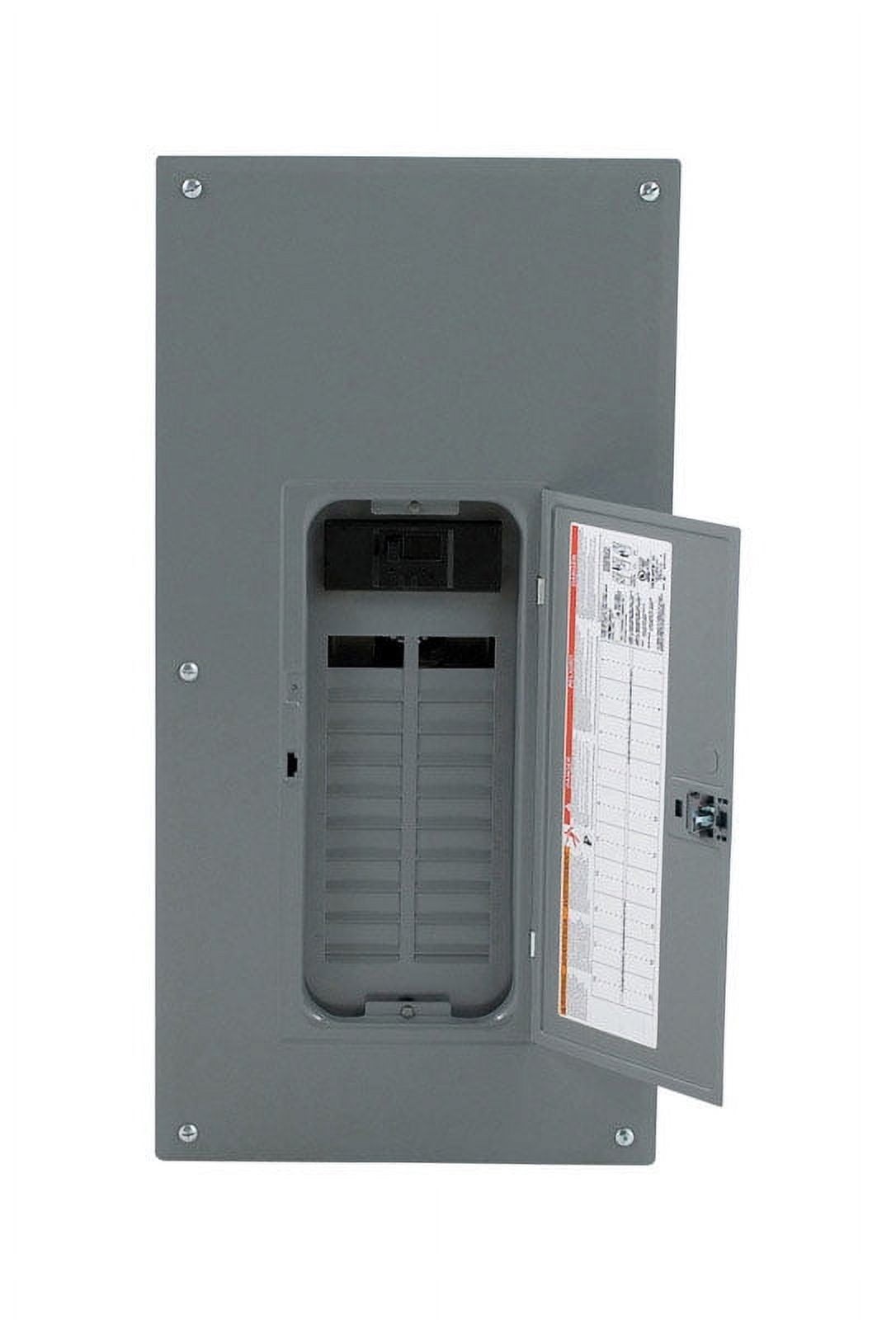

Main Breaker Load Center with Cover, Indoor - 200 AMP, Grey

Description:

Item # 9W78WZUPC: 785901977285
HOMELINE MAIN BREAKER LOAD CENTER W/ COVER
SCHNEIDER HOM2040M200PC

These load centers support the use of a comprehensive range of accessories. Systems are configured for single-phase operation and are rated for indoor use or are rainproof. Homeline load centers serve residential and industrial markets, providing protection for electrical systems, equipment, and personnel. This Homeline load center features a two-pole plug-on-neutral main supply circuit breaker with a 200A 120/240 VAC single-phase rating. The load center offers a breaking capacity of 22 kA. This system consists of 20 spaces within a NEMA 1 indoor enclosure, featuring a combination flush/surface indoor cover.

  • 20 Space 40 Circuit
  • Main Plug on Neutral Load Center w/ Cover
  • Built with Plated, Aluminum with Bus Bar
  • Fully distributed Neutral Bar
  • Allows installing Homeline Plug on Nuetral Combo Arc Fault
  • Breakers on any Space
  • Use Full Size Tandem Quad Breakers
  • Comes with Combo Cover
  • Rated 120/240 VAC -& 22,000 AIR Short Circuit
  • 200 Amp
  • DIMENSIONS: 29.86"Hx14.25"W
