Threaded Rod, Zinc-Plated Steel - 1/4"-20 x 72"
Threaded Rod, Zinc-Plated Steel - 1/4"-20 x 72"

Available Sizes:

Description:

Item # 38H0EAUPC: 053538106041

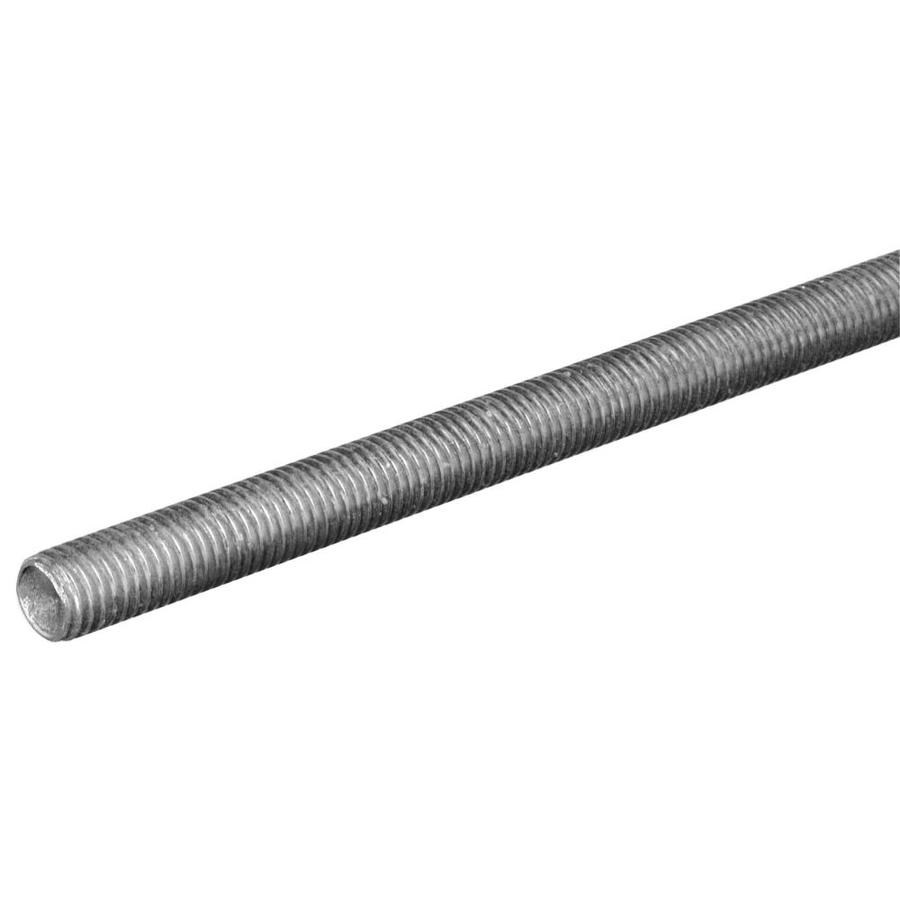

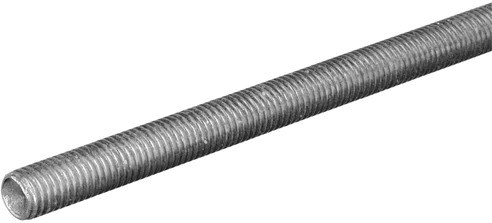

HILLMAN STEELWORKS THREADED ROD - 1/4-20 x 72"

Zinc-plated, low-carbon steel threaded rod for hangers, anchor bolts, U-bolt fabrication, clamps, and general fastening. Coarse UNC threads accept any standard hex nut or washer of the matching size. Cut to length with a hacksaw or angle grinder, then chase the cut end with a file or thread chaser so nuts thread on cleanly.

  • Material: Low-carbon steel, made in USA
  • Finish: Zinc electroplated for a bright look and indoor/light-duty corrosion resistance
  • Diameter: 1/4
  • Thread: 20 TPI coarse (UNC Class 2A), fits standard hex nuts and washers
  • Length: 72"
  • Strength: Low-carbon steel rod equates to roughly SAE Grade 2 (about 55,000 psi tensile, 36,000 psi yield) - suitable for general fastening and hanging; step up to Grade 5 or 8 all-thread for structural-load applications
  • Typical 72" uses: full-height studs cut to multiple shorter pieces, tall wall-anchor through-bolts, and multi-level rack hangers
  • Applications: Hangers, anchor bolts, U-bolts, clamps, general fastening

Tip: Wrap masking tape around the cut zone before sawing to keep the threads clean, then run a nut over the cut end to chase the threads. For 72" stock, plan to cut it down to several shorter hangers or studs as needed - it ships full-length. Do not weld electroplated rod; the zinc coating produces toxic fumes when heated.
