Grip Rite Structural Screw - 3/8" x 12", 50-Pack
Grip Rite Structural Screw - 3/8" x 12", 50-Pack
Grip Rite Structural Screw - 3/8" x 12", 50-Pack

Available Sizes:

Description:

Item # 10KHXUUPC: 764666745957

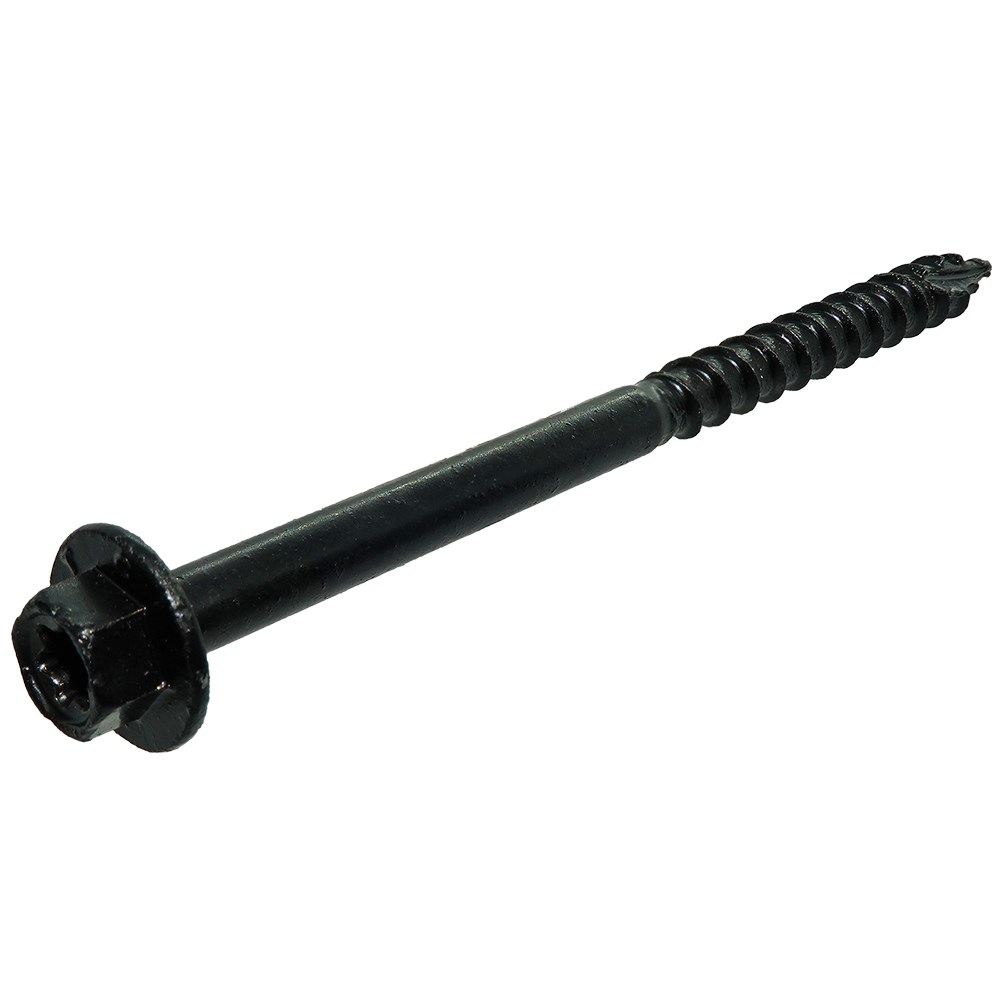

GRIP RITE HEX HEAD STRUCTURAL SCREW - 3/8" x 12", 50-PACK

Replace lag screws with the Grip Rite PrimeGuard Plus Hex Washer Head Structural Screw. The 3/8" x 12" screw drives with a 3/8" hex driver or a T-25 star bit (dual-drive head), and the Type 17 self-drilling point cuts into framing lumber without pre-drilling. PrimeGuard Plus exterior coating is approved for use in ACQ pressure-treated lumber, and the screws are ICC-ES evaluated under ESR-3933 for code-compliant structural connections.

  • Size: 3/8" x 12"
  • Dual-drive head: 3/8" hex washer with T-25 star recess
  • Type 17 self-drilling point - no pre-drilling required in softwood framing
  • PrimeGuard Plus corrosion-resistant coating (approved for ACQ-treated lumber)
  • ICC-ES evaluation report ESR-3933 for code-compliant load-bearing connections
  • Designed to replace lag screws in wood-to-wood structural attachment
  • Free driver bit included with every box
  • Pack: 50 screws per box

Applications: Deck framing and ledger attachment, pergola and gazebo construction, multi-ply beam lamination, stair stringer attachment, playground structures, and general exterior wood-to-wood structural connections.

Tip: 3/8" x 12" handles 6x6 or 8x6 post-to-beam laminations with full thru-pass, locks triple 2x beam stacks across the full beam depth, and ties hammer-driven 4x4 post-to-triple-2x rim connections on heavy deck framing. This is the longest size in the line; verify the assembly thickness before ordering to avoid over-protrusion.
