10 Circuit Generator Transfer Switch ~ 11" x 11.75" x 4.5"

Description:

Item # TVDZCCUPC: 815181012021
10-CIRCUIT GENERATOR TRANSFER SWITCH


The Pro/Tran 2 is the next generation of Loadside™ manual transfer switch by Reliance Controls. These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification. Simply select the circuits needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the manual.

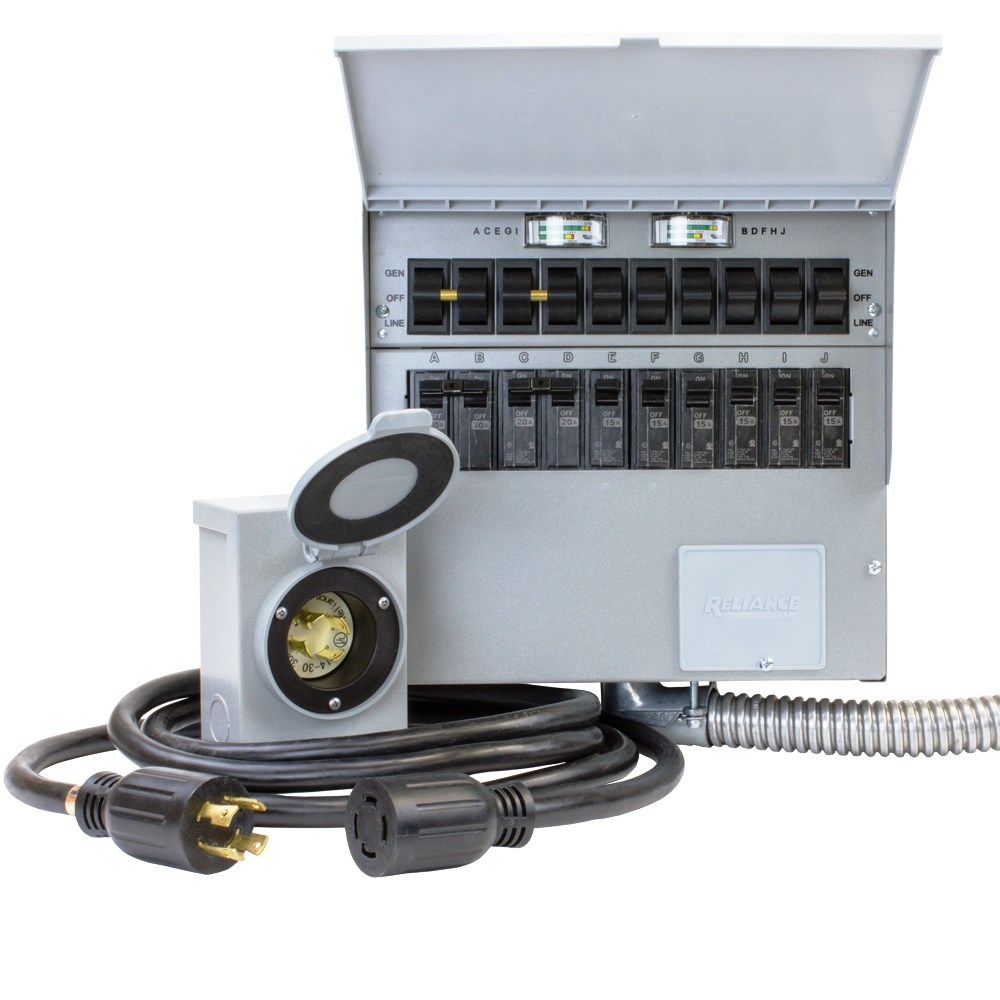

310CRK kit includes: model 310C ten-circuit prewired transfer switch, PC3010 power cord (10 feet, 10 AWG, L14-30 ends), and the PB30 outdoor painted steel power inlet box (L14-30 inlet).

  • 120/240VAC - 30Amp
  • Rugged powder-coated steel cabinet with 10 combination 1/2" & 3/4" knockouts
  • With (10) 1" interchangeable circuit breakers
  • This product is supplied with a combination of 15- and 20-amp circuit breakers
  • All circuit breaker positions will accommodate 15- and 20-amp circuit breakers, and may be easily changed in the field
  • UL Listed Standard 1007 ANSI/FPA70
  • 11"  x 11.75" x 4.5"
