ATMOSPHERIC TYPE VACUUM BREAKER

Designed to prevent polluted water from being siphoned into the potable water supply.  When water from the inlet side flows through the valve, it lifts the free-floating poppet assembly and closes the atmospheric vent.   Designed to operate in systems having a max intermittent water pressure of 125 psi and a max operating temperature of 212 deg. F.

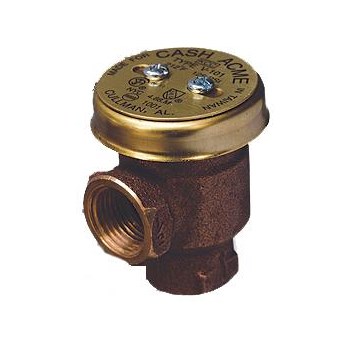

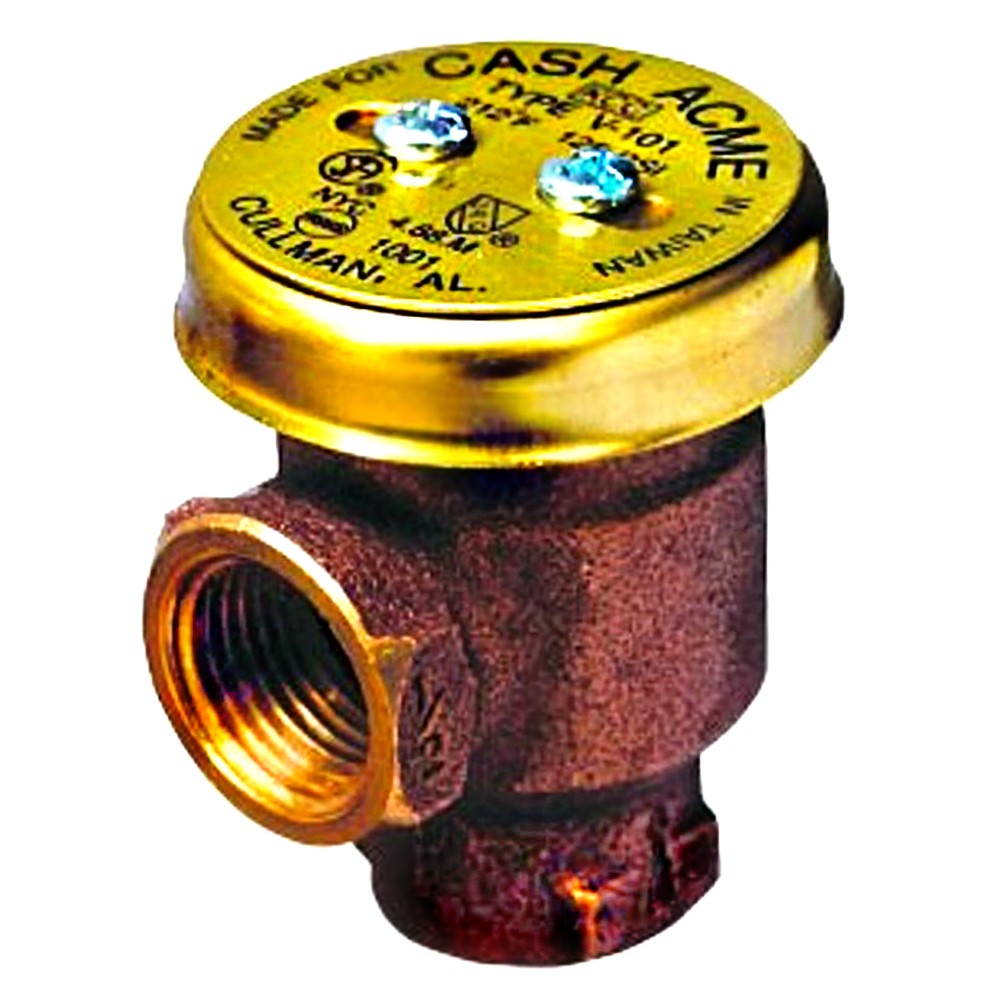

• The V-101 anti-siphon vacuum breaker is constructed with female connections, a bronze body, and a silicone seat.
• When water from the inlet side flows through  the valve, it lifts the free-floating poppet assembly and closes the atmospheric vent
• Designed to operate in systems having a max intermittent water pressure of 125 psi and a max operating temperature of 212 deg. F.
• ASSE 1011/CSA B64.1.1
• Application: Recommended applications include: open tanks or basins filled by a hose below the water line; in appliances where water enters below the overflow rim; or in lawn sprinkling systems, or medical, surgical and therapeutic facilities.
